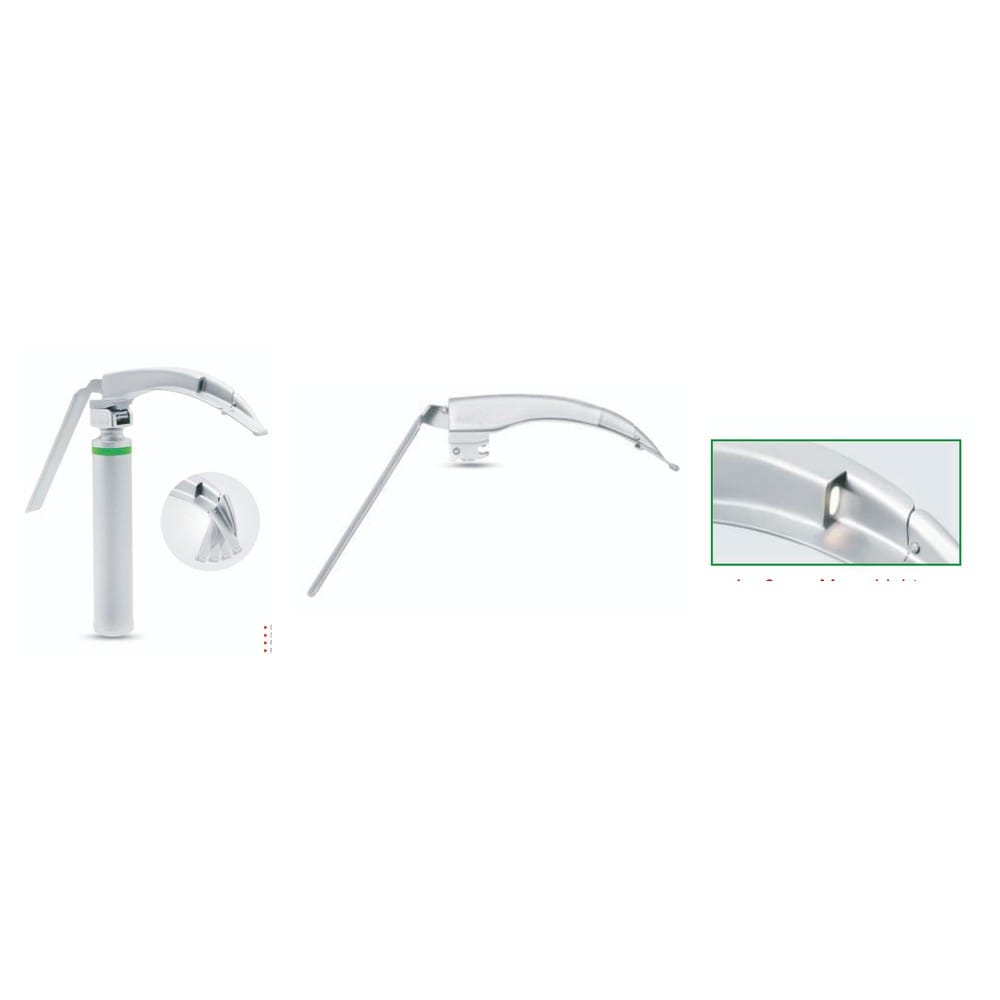

McCoy Flexible Tip Mega Fiber Optic Blade 2 (Ref DI-100-02) — Catalogue reference DI-100-02.
- McCoy lever-controlled flexible tip — adjustable through 90° for difficult intubation
- Outstanding light intensity with LED illumination via extra-strong fiber bundle
- 4 × 6 mm Mega Light — 6,500 individual micro-fibers
- Reduced force required to visualize the larynx
- Reduced likelihood of damage to teeth and soft tissues
- AISI 303 / AISI 304 stainless steel with satin finish
- Fully autoclavable and easier to clean
- ISO 7376 standard handle fitting
| Reference / SKU | DI-100-02 |
| Size | Size 2 (small adult) |
| Blade dimensions | 116 mm × 94 mm |
| Pattern | McCoy flexible-tip — Macintosh-derivative |
| Light system | 4 × 6 mm Mega Light · 6,500 micro-fibers |
| Handle compatibility | Fiber Optic · ISO 7376 standard |
| Power supply | 2 × C-size batteries (in compatible handle) |
| Material | AISI 303 / AISI 304 stainless steel (AISI 316 on fiber-optic variants) |
| Sterilization | Steam autoclave to 134 °C · EtO compatible |
| Quality system | ISO 13485:2016 · CE-marked under EU MDR 2017/745 · FDA establishment-registered |
The laryngoscope blade and handle are the airway clinician’s primary intubation tools. Two blade families dominate: the Macintosh (curved, indirect epiglottis elevation) and the Miller (straight, direct epiglottis lift). Size 0 covers neonatal intubation; sizes 1 and 2 paediatric; sizes 3 and 4 adult. Conventional bulb-illumination blades remain in use in some settings; fiber-optic blades have largely replaced them in operating theatres for the brighter, glare-free light at the tip. Handles come in small (paediatric) and large (adult) variants and must mate with the chosen blade family. Manufacturing demands tight tolerance on the blade hinge and the bulb/fiber connection. Fizza supplies complete intubation sets in stainless steel with optional fiber-optic upgrades.
Fizza Surgical exports to hospital groups, surgical distributors, and OEM partners across Europe, North America, the Middle East, Africa, and Asia. Container-load shipments move via DHL Express, UPS, FedEx, and major sea-freight lines on all Incoterms (EXW, FOB, CIF, DDP). All Incoterms 2020 commercial documentation, including health certificates and certificates of origin attested by the Sialkot Chamber of Commerce, is prepared in-house.
