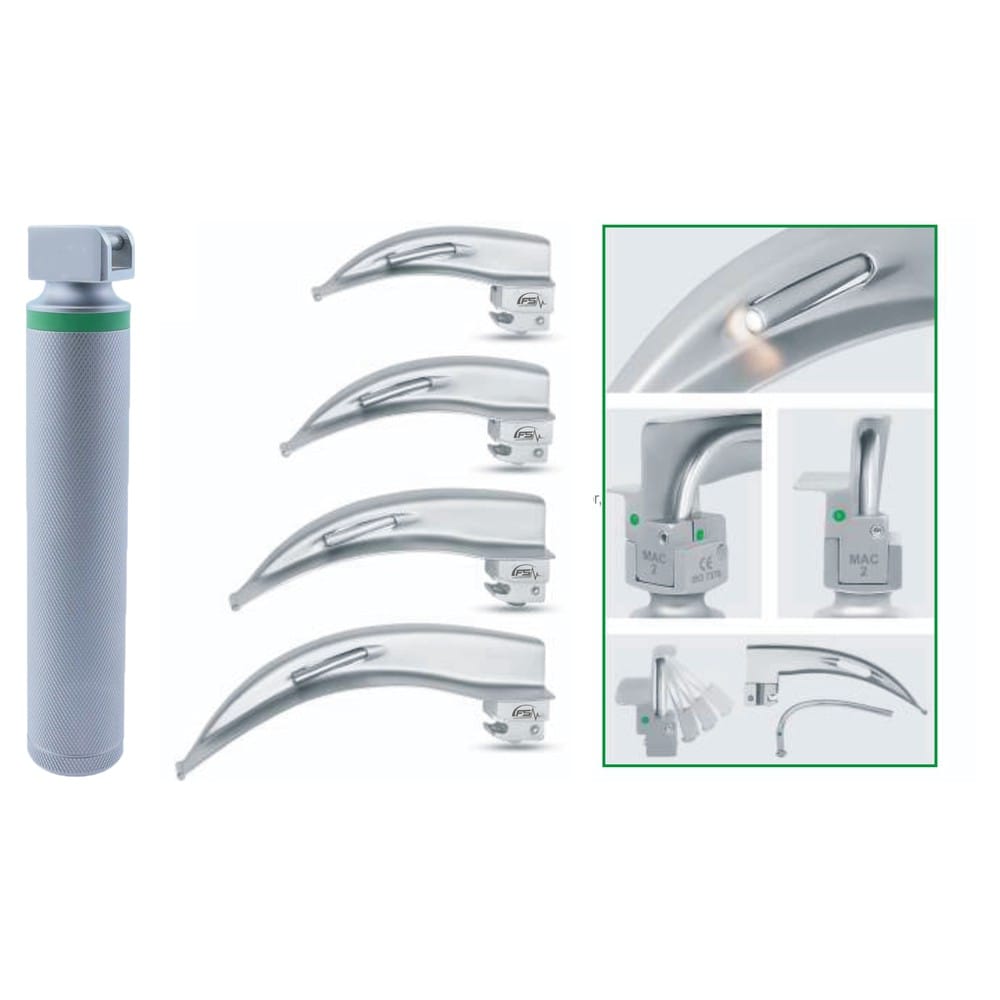

The Macintosh fiber optic laryngoscope blade is the curved blade used for indirect laryngoscopy: the tip sits in the vallecula and lifting the handle raises the epiglottis. Fizza Surgical makes it in seven sizes, 00 to 5, under catalogue references DI-205-01 to DI-205-07. The light conductor comes out without tools for cleaning, and every size fits a fiber optic handle with the ISO 7376 fitting.
Sizes and catalogue references
| Blade size | Reference | Typical patient group |
|---|---|---|
| 00 | DI-205-01 | Premature neonates |
| 0 | DI-205-02 | Term neonates and small infants |
| 1 | DI-205-03 | Infants up to 12 months |
| 2 | DI-205-04 | Children 1–10 years |
| 3 | DI-205-05 | Most adult intubations |
| 4 | DI-205-06 | Large adults and bariatric patients |
| 5 | DI-205-07 | Extra-large adults and specialty cases |
Quote the reference for the size you need when you send an inquiry. The same blades are also supplied as sets of three, four or five blades.
Catalogue features
- Macintosh fiber-optic blade with removable light conductor (tool-free)
- Integrated fiber optic for best possible illumination
- 4 mm fiber-optic light conductor — up to 6,500 micro-fibers
- Compatible with all standard Fiber Optic handles
- AISI 303 / AISI 304 stainless steel with satin finish
- Smooth shape avoids sharp edges
- Fully autoclavable
- ISO 7376 standard fitting
Specification
| Pattern | Macintosh — fixed curved blade, removable light conductor |
| Light system | 4 mm Fiber Optic · 6,500 micro-fibers |
| Handle compatibility | Fiber Optic · ISO 7376 standard |
| Material | AISI 303 / AISI 304 stainless steel (AISI 316 on fiber-optic variants) |
| Sterilization | Steam autoclave to 134 °C · EtO compatible |
| Quality system | ISO 13485:2016 · CE-marked under EU MDR 2017/745 · FDA establishment-registered |
Handles and care
These blades are used with our fiber optic laryngoscope handles. For choosing between sizes in children see the pediatric laryngoscope selection guide, and for reprocessing see the laryngoscope sterilization protocol.
Made at the Fizza Surgical International facility in Sialkot, in operation since 1980, under ISO 13485:2016 with CE marking under EU MDR 2017/745 and FDA establishment registration.
