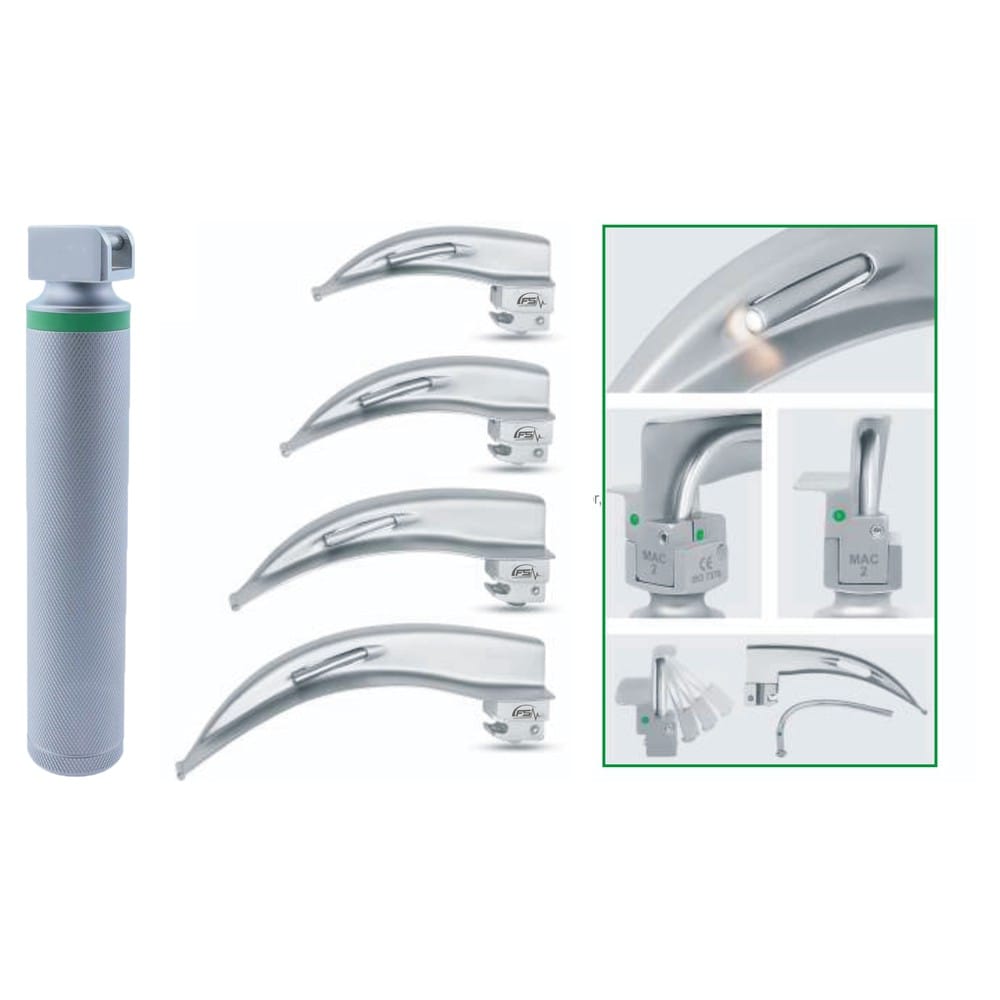

Macintosh Fiber Optic Blade 5 (Ref DI-205-07) — Catalogue reference DI-205-07.
- Macintosh fiber-optic blade with REMOVABLE light conductor (tool-free)
- Integrated fiber optic for best possible illumination
- 4 mm fiber-optic light conductor — up to 6,500 micro-fibers
- Compatible with all standard Fiber Optic handles
- AISI 303 / AISI 304 stainless steel with satin finish
- Smooth shape avoids sharp edges
- Fully autoclavable
- ISO 7376 standard fitting
| Reference / SKU | DI-205-07 |
| Pattern | Macintosh — fixed curved blade, removable light conductor |
| Light system | 4 mm Fiber Optic · 6,500 micro-fibers |
| Handle compatibility | Fiber Optic · ISO 7376 standard |
| Power supply | 2 × C-size batteries (standard) · 2 × AA-size (paediatric/stubby) |
| Material | AISI 303 / AISI 304 stainless steel (AISI 316 on fiber-optic variants) |
| Sterilization | Steam autoclave to 134 °C · EtO compatible |
| Quality system | ISO 13485:2016 · CE-marked under EU MDR 2017/745 · FDA establishment-registered |
The laryngoscope blade and handle are the airway clinician’s primary intubation tools. Two blade families dominate: the Macintosh (curved, indirect epiglottis elevation) and the Miller (straight, direct epiglottis lift). Size 0 covers neonatal intubation; sizes 1 and 2 paediatric; sizes 3 and 4 adult. Conventional bulb-illumination blades remain in use in some settings; fiber-optic blades have largely replaced them in operating theatres for the brighter, glare-free light at the tip. Handles come in small (paediatric) and large (adult) variants and must mate with the chosen blade family. Manufacturing demands tight tolerance on the blade hinge and the bulb/fiber connection. Fizza supplies complete intubation sets in stainless steel with optional fiber-optic upgrades.
OEM private-label production is available from 300 units per SKU, with custom laser etching for distributor codes, hospital procurement IDs, and sterilization-cycle tracking marks. Custom packaging — peel pouch, blister, fabric-wrap kits, or co-branded boxes — is configured to distributor specification. Bulk-order pricing tiers are available on request for hospital group purchasing organizations and national procurement entities.
