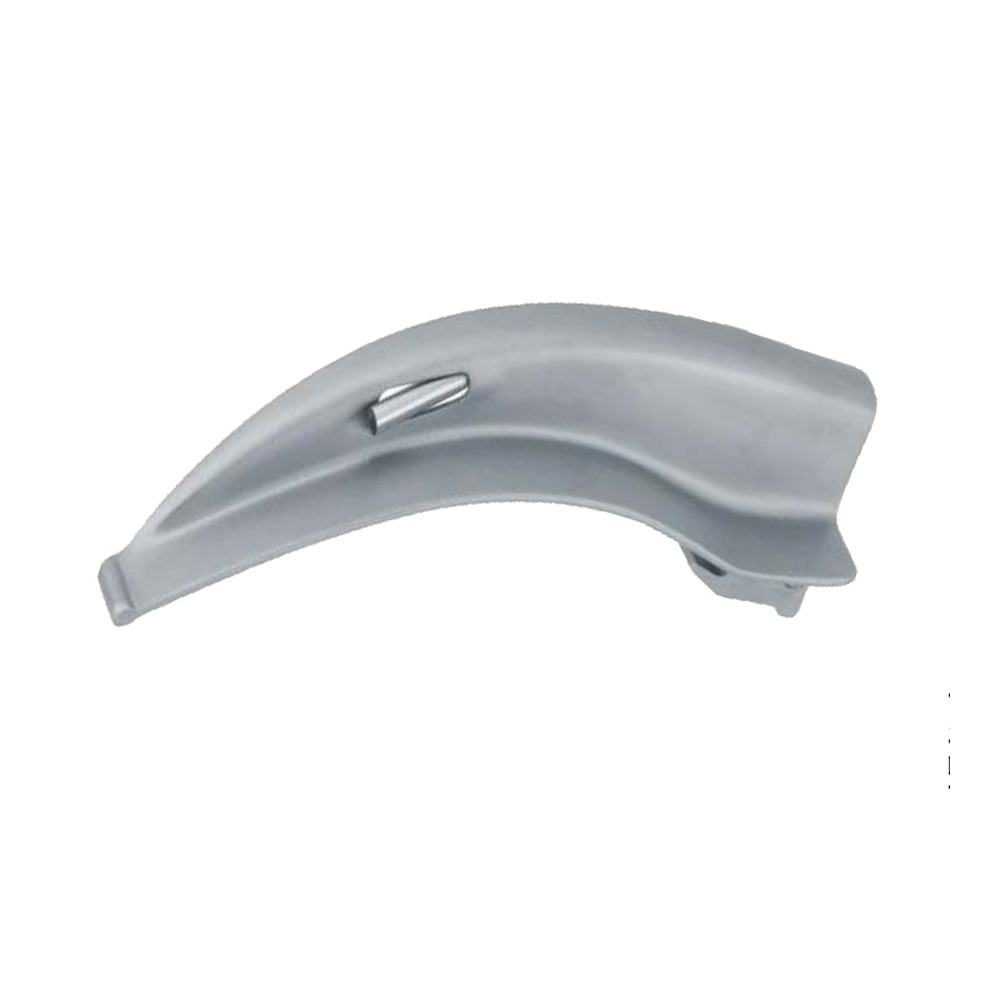

Fiber Optic Macintosh Blade 90mm - 92mm :

Our new, innovative manufacturing technology achieves even better illumination and a longer service life.we can manufacture your product with Highest Quality Standard Raw Material.

Product Specifications

• Blade Type: Macintosh (curved), fiber optic illumination
• Blade Length: 90–92 mm
• Material: AISI 420 surgical stainless steel, satin finish
• Illumination: Sealed fiber optic bundle — bright, cool light at the blade tip
• Handle Compatibility: ISO 7376 Green Spec — compatible with any Green Spec handle
• Sterilization: Autoclave at 134°C (273°F); rated for 3,000+ sterilization cycles
• Weight: Light-weight for fatigue-free intubation
• Certifications: ISO 13485:2016, CE Marked, FDA Registered, ISO 7376 compliant

Clinical Applications

The Macintosh 90–92 mm Fiber Optic Blade is designed for intubation of infants and young children. This Mac 1 size is designed for patients approximately 6 months to 3 years old, or for clinicians who prefer curved blade technique in the pediatric population (though Miller blades remain more common at this age). The curved blade body engages the vallecula (the space between tongue base and epiglottis), and upward-anterior traction indirectly lifts the epiglottis to expose the vocal cords for endotracheal intubation.

This fiber optic version delivers 3,000+ lux illumination at the blade tip, providing shadow-free visualization of the larynx. The sealed fiber bundle withstands repeated autoclave cycles without light output degradation.

Why Choose Fizza Surgical Macintosh Blades

• Direct manufacturer in Sialkot, Pakistan — factory-direct pricing, no distributor markup
• Full ISO 7376 compliance — interchangeable with Heine, Welch Allyn, Riester Green Spec handles
• Lifetime warranty on the blade body against manufacturing defects
• Sample policy — free sample units for qualified distributors
• OEM/private-label available from 100-unit orders with custom engraving and packaging

Bulk & Wholesale

For hospital procurement teams and medical device distributors: Request a factory quote for bulk Macintosh blade orders. Standard pricing scales significantly at 500+ unit volumes.

Also browse our full Macintosh laryngoscope blade range covering sizes 0 through 5 in fiber optic, conventional, and specialty patterns.
