Laryngoscopes — Fiber Optic & LED Laryngoscope Manufacturer

Fizza Surgical International manufactures a comprehensive range of laryngoscopes for anaesthesiology, emergency medicine, and critical care. Based in Sialkot, Pakistan, we produce fiber optic laryngoscope blades, LED laryngoscope handles, and complete laryngoscope sets to ISO 7376 standards — exported to hospitals, distributors, and OEM partners across 50+ countries worldwide.

Every laryngoscope leaving our facility undergoes individual optical alignment testing, light output verification, and autoclave validation to ensure reliable airway management performance in clinical settings.

Laryngoscope Blade Range

We manufacture laryngoscope blades in all standard profiles and sizes, available in both fiber optic and conventional illumination configurations. All blades feature precision-machined stainless steel construction with high-polish or satin finish.

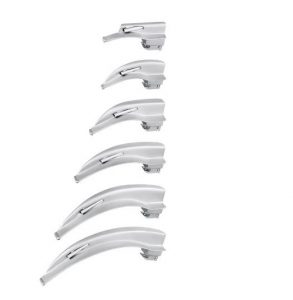

Macintosh Laryngoscope Blades (Curved)

The Macintosh blade is the most widely used curved laryngoscope blade for adult and paediatric intubation. Our Macintosh blades feature an optimised flange geometry that provides excellent tongue displacement and epiglottic visualisation via the vallecula approach. Available in standard and reduced-flange (English profile) configurations:

• Size 0 — Neonate (65–70 mm blade length)
• Size 1 — Infant (90–92 mm)
• Size 2 — Child (110 mm)
• Size 3 — Medium adult (130 mm)
• Size 4 — Large adult (150 mm)
• Size 5 — Extra-large adult (176 mm)

Reduced-flange English profile Macintosh blades are also available in sizes 1 (100 mm), 2 (130 mm), and 3 (142–145 mm) for clinicians who prefer a narrower blade profile during intubation.

Miller Laryngoscope Blades (Straight)

Miller straight blades are the preferred choice for neonatal and paediatric airway management, and for difficult adult airways where direct epiglottic lift is required. Our Miller blades provide a slim, straight profile with a curved tip for precise epiglottis control:

• Size 0 — Premature/neonate (65–70 mm)
• Size 1 — Infant (78–80 mm)
• Size 2 — Child/infant (102–105 mm)
• Size 3 — Child (154–155 mm)
• Size 4 — Medium adult (195 mm)
• Size 5 — Large adult (205 mm)

Phillips Laryngoscope Blades

The Phillips blade combines a semi-curved design with a straighter distal tip, providing versatility for both direct and indirect intubation techniques. We manufacture Phillips blades in 113 mm (child) and 166 mm (adult) configurations.

McCoy Laryngoscope Blades

The McCoy (levering-tip) laryngoscope blade features an articulating distal tip controlled by a lever mechanism on the proximal end. This design enables indirect epiglottic lift without requiring excessive force — particularly valuable in Cormack-Lehane Grade III and IV difficult airway scenarios. Our McCoy blades are manufactured from surgical-grade stainless steel with a precision hinge mechanism rated for 5,000+ articulation cycles.

Laryngoscope Handles

Our laryngoscope handles are manufactured to ISO 7376 green-specification compatibility, ensuring universal interchangeability with all standard laryngoscope blades. Available in multiple illumination technologies and sizes:

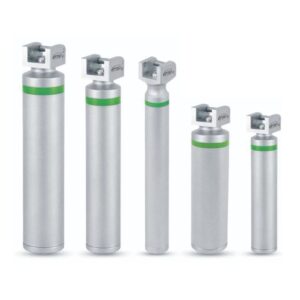

• Standard Fiber Optic Handle — 2.5V halogen or 3.5V xenon bulb with fiber optic light transmission to the blade
• Large Handle — Ergonomic grip for practitioners requiring additional leverage during intubation
• Standard Conventional Handle — Traditional handle design compatible with conventional (non-fiber optic) blades
• Xenon Handle — High-intensity xenon illumination providing superior brightness and colour rendering for enhanced tissue visualisation

All handles feature knurled aluminium or stainless steel construction with sealed battery compartments, compatible with standard C-cell or AA batteries depending on handle size.

Complete Laryngoscope Sets

We offer pre-configured laryngoscope sets for neonatal, paediatric, and adult intubation. Each set includes a handle and multiple blade sizes in a fitted carrying case — ideal for hospital procurement, emergency kits, and medical training programmes. Custom set configurations are available for OEM customers.

Fiber Optic vs LED Laryngoscopes — Technical Comparison

Understanding the difference between fiber optic and LED illumination systems is essential for selecting the right laryngoscope for your clinical requirements:

Both fiber optic and LED laryngoscope systems manufactured by Fizza Surgical comply with ISO 7376 green-specification fittings, ensuring cross-compatibility between handles and blades regardless of illumination type.

Manufacturing Standards & Quality Certifications

Every laryngoscope we manufacture meets stringent international quality and regulatory standards:

• CE Marking — Full compliance with European Medical Device Regulations for Class I medical devices
• ISO 13485:2016 — Certified Quality Management System for medical device manufacturing
• ISO 7376 — International standard for laryngoscope fitting systems (green-specification interchangeability)
• ISO 9001:2015 — Quality Management System certification for consistent manufacturing processes

Our quality control process includes individual light output measurement (minimum 500 lux at blade tip), optical fiber integrity testing, blade-to-handle locking mechanism verification, and autoclave cycle validation at 134°C for 18 minutes per ISO 17665-1 sterilisation protocols.

Laryngoscope Materials & Construction

All reusable laryngoscope blades are manufactured from medical-grade AISI 304 and AISI 316L stainless steel, chosen for their superior corrosion resistance and biocompatibility during repeated autoclave sterilisation cycles. Handles are constructed from anodised aluminium alloy or stainless steel with sealed O-ring battery compartments to prevent moisture ingress during steam sterilisation.

Fiber optic bundles use medical-grade borosilicate glass fibers with a minimum light transmission efficiency of 85%. LED modules utilise high-CRI (Colour Rendering Index >90) diodes for accurate mucosal tissue colour representation during intubation procedures.

OEM & Private Label Laryngoscope Manufacturing

We provide complete OEM and private label manufacturing services for international medical device brands and distributors. Our OEM capabilities include:

• Custom logo laser engraving on blades and handles
• Branded packaging design and production
• Custom blade profiles and size configurations
• Regulatory documentation support (CE technical files, ISO certificates, Declaration of Conformity)
• Evaluation samples for product qualification testing

Standard MOQ is 50 units per blade type for catalogue products. Custom or private label orders require 100–1,000 units depending on modification complexity. Contact our sales team or submit a distribution request to discuss your laryngoscope manufacturing requirements.

Global Laryngoscope Export Network

Since 1980, we have been exporting laryngoscopes and surgical instruments to hospitals, clinics, and medical distributors worldwide. Our current export network spans 50+ countries including the United States, United Kingdom, Germany, France, United Arab Emirates, Saudi Arabia, South Africa, Nigeria, Brazil, Australia, Japan, and many more.

We ship via DHL, FedEx, UPS for urgent orders (3–5 business days to most destinations) and sea freight for bulk shipments. All shipments include full export documentation, certificates of conformity, and customs-ready commercial invoices.

Ready to source laryngoscopes from a trusted CE-certified manufacturer? Request a quotation today.
