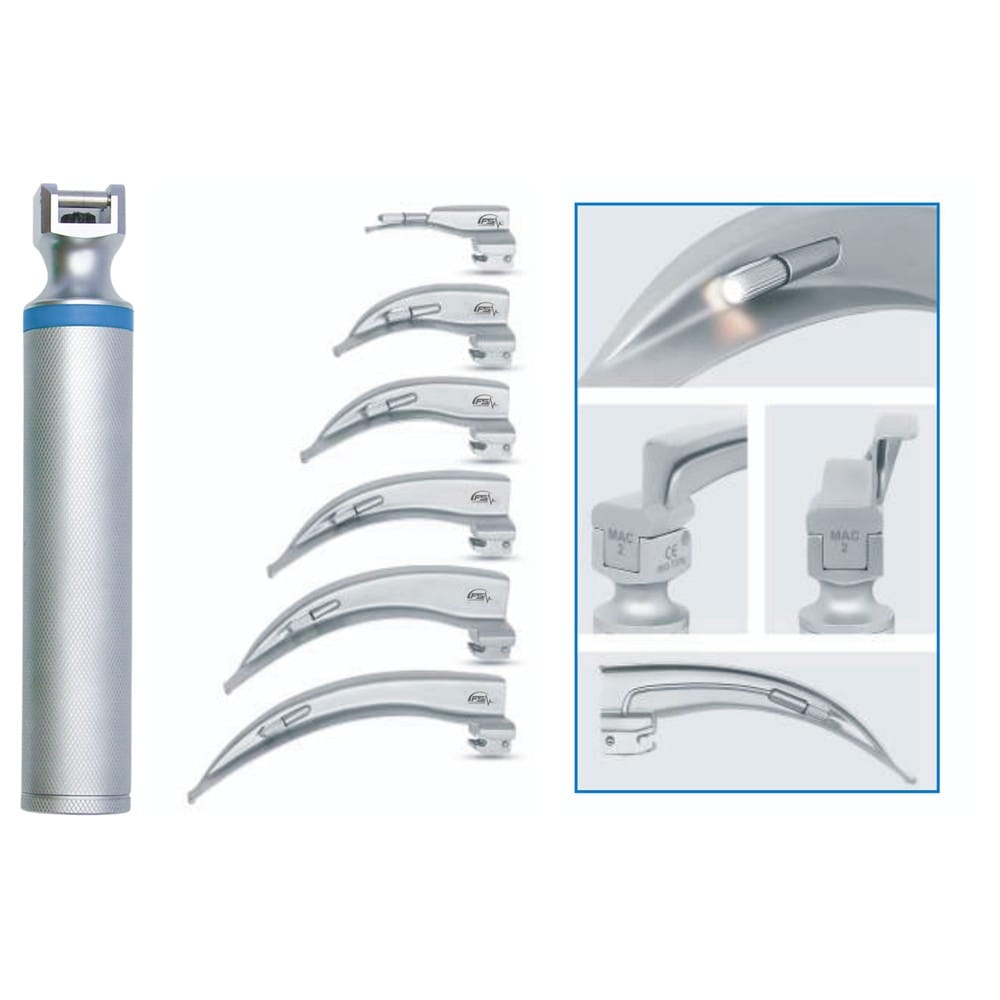

The Macintosh conventional laryngoscope blade carries its light source in the blade itself: an LED bulb that the user can change. It is the curved pattern for indirect laryngoscopy, made by Fizza Surgical in seven sizes, 00 to 5, under catalogue references DI-225-01 to DI-225-07, and it fits conventional handles with the ISO 7376 fitting.
Sizes and catalogue references
| Blade size | Reference | Typical patient group |
|---|---|---|
| 00 | DI-225-01 | Premature neonates |
| 0 | DI-225-02 | Term neonates and small infants |
| 1 | DI-225-03 | Infants up to 12 months |
| 2 | DI-225-04 | Children 1–10 years |
| 3 | DI-225-05 | Most adult intubations |
| 4 | DI-225-06 | Large adults and bariatric patients |
| 5 | DI-225-07 | Extra-large adults and specialty cases |
Quote the reference for the size you need when you send an inquiry. The same blades are also supplied as sets of three, four or five blades.
Catalogue features
- Macintosh conventional blade with LED bulb
- Light bulb in the blade can easily be changed
- Outstanding light intensity with LED illumination
- Satin finish reduces glare and ensures safer intubations
- AISI 303 / AISI 304 stainless steel
- Smooth knurled handle provides grip without risk of tearing gloves
- Fully autoclavable
- ISO 7376 standard fitting
Specification
| Pattern | Macintosh — fixed curved blade |
| Light system | Direct LED bulb (user-replaceable) |
| Handle compatibility | Conventional · ISO 7376 fitting |
| Material | AISI 303 / AISI 304 stainless steel (AISI 316 on fiber-optic variants) |
| Sterilization | Steam autoclave to 134 °C · EtO compatible |
| Quality system | ISO 13485:2016 · CE-marked under EU MDR 2017/745 · FDA establishment-registered |
Handles and care
These blades are used with our conventional laryngoscope handles. For reprocessing see the laryngoscope sterilization protocol.
Made at the Fizza Surgical International facility in Sialkot, in operation since 1980, under ISO 13485:2016 with CE marking under EU MDR 2017/745 and FDA establishment registration.
